Product specifications
Characteristic | Value |
|---|---|
| Chip Technology | IGBT 3 (Trench) |
| Current (A) | 400 A |
| Dimensions (LLxBBxHH) mm | 130x70x17 |
| Features | Solderless assembling solution with PressFIT signal pins and screw power terminalsIGBT Trench Gate TechnologyV<sub>CE(sat)</sub> with positive temperature coefficientLow inductance caseReliable mechanical design with injection moulded terminals and reliable internal connectionsUL recognized file no. E63532NTC temperature sensor inside |
| Housing | SEMiX 5p |
| Part Number | 21920300 |
| Product Line | SEMiX |
| Product Status | In production new |
| Product Type | SEMiX405GARL07E3 |

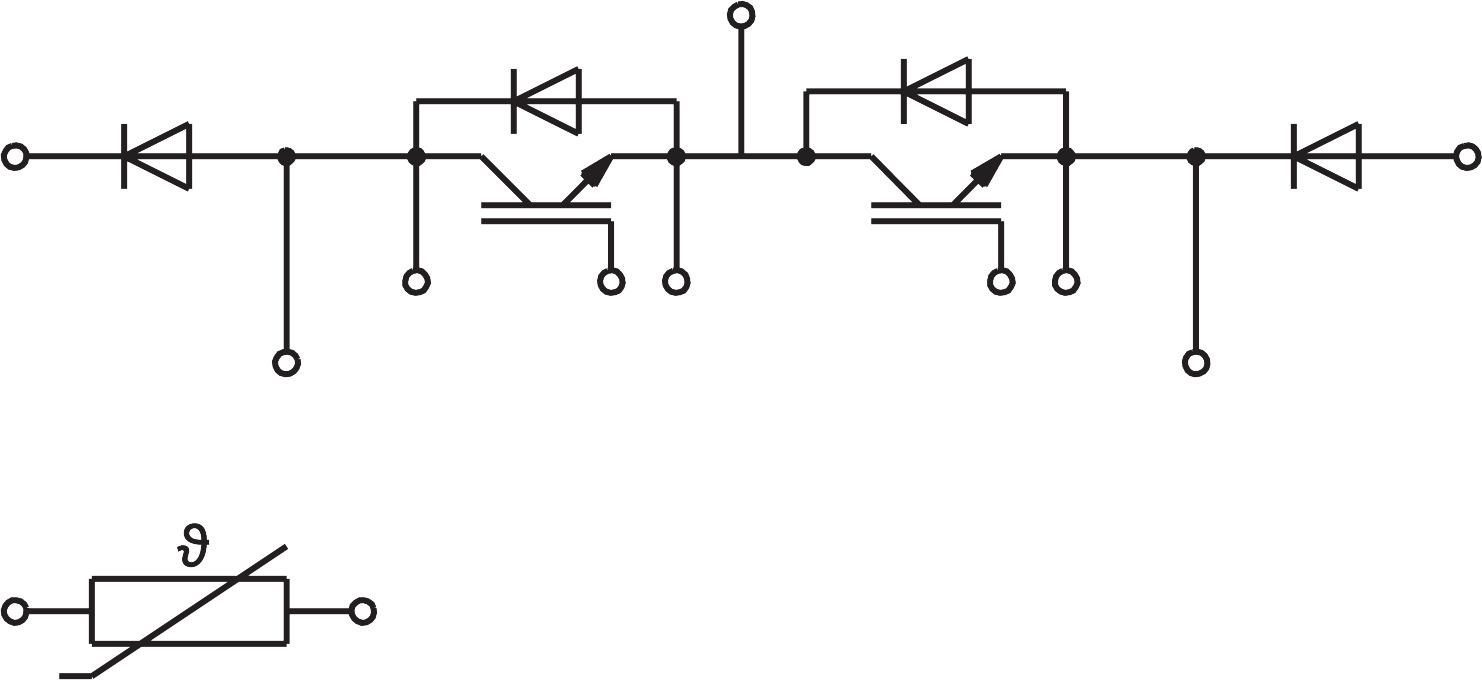

| Switches | Chopper/Booster |
| Technology | IGBT |
| Typical Applications | UPS3 Level Inverters |
| Voltage (V) | 650 V |
